Motor de vehículo EURO II

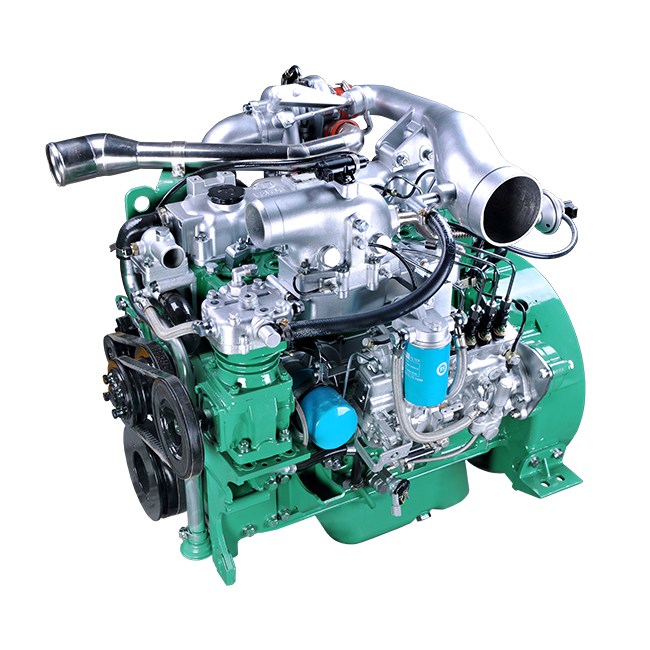

EURO II Vehicle Engine 4DF series

Compartimiento:
Model4DF2-134DF2-144DF2-164DF2-17
Type4-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled
Bore×Stroke(mm)110×125
Valves/cylinder2
Displacement (L)4.751
Rated power96103117125
Rated speed (r/min)2500230023002300
Net power/speed(kW/r/min)93100114122
Maximum torque (Nm)390510580580
Maximum torque speed(r/min)15001400
Fuel consumption (g/kW·h)≤ 202
Smoke (m-1)≤ 3.0
Noise dB(A)≤ 98
Emission Compliant(TAS)EURO Ⅱ
Net Mass (kg)480
Length×Width×Height(mm)935×720×940
