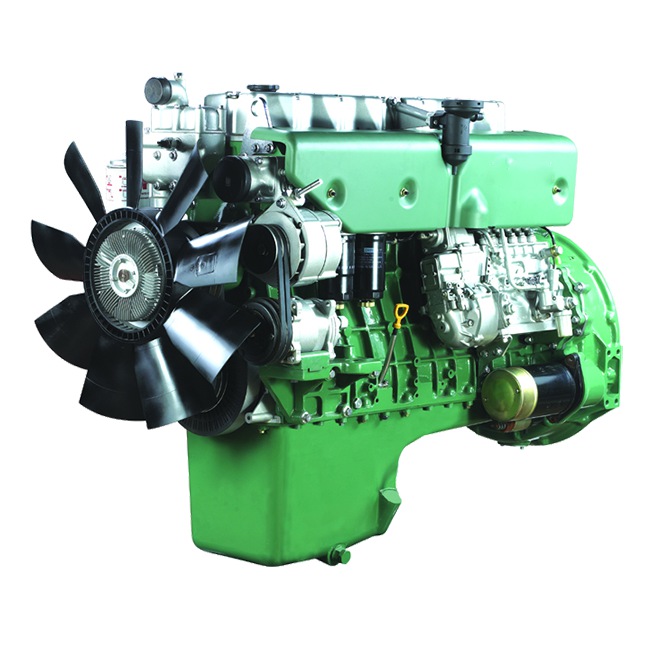

Motor de vehículo EURO II
| Model | CA6DL1-24 | CA6DL1-26 | CA6DL1-28 | CA6DL1-30 | CA6DL1-31 | CA6DL1-32 |
| Type | 6-cylinder in-line, direct injection, turbocharged&intercooling, common rail | |||||
| Bore×Stroke (mm) | 110×135 | |||||
| Valves/cylinder | 4 | |||||
| Displacement (L) | 7.7 | |||||
| Rated power (kW) | 188 | 203 | 216 | 231 | 239 | 246 |
| Net power (kW) | 186 | 201 | 214 | 229 | 237 | 243 |
| Rated speed (r/min) | 2300 | |||||
| Maximum torque (Nm) | 1000 | 1000 | 1100 | 1100 | 1100 | 1250 |
| Maximum torque speed (r/min) | 1300～1500 | |||||
| Fuel consumption (g/kW·h) | ≤ 198 | |||||
| Noise dB (A) | ≤ 96.5 | |||||
| Technical Route | common rail | |||||
| Emission Compliant (TAS) | EURO Ⅱ | |||||
| Net Massb (kg) | 800 | |||||
| Length×Width×Height (mm) | 1285×820×1050 | |||||
