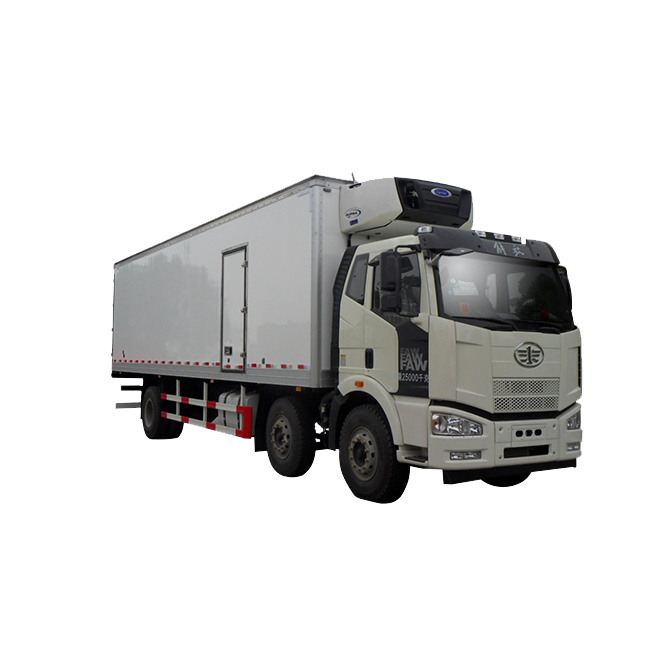

Refrigerate Van

Key Wordsrefrigerated truck
Outline Dimension(m)8~12×2.5×3.88
Internal Dimension(m)6.5~9.6×2.4×2.3~2.5
Pay Load(t)5~20
Engine ModelCA4DF, CA6DF, CA6DL(EuroIV)
Engine Power(Hp)130~260
Tire9.00-20, 10.00-20, 11.00R20
Othersair exhaust brake, air conditioner, ABS
MaterialFRP in both sides, high density polyurethane insulation materials in the middle
Dash Board100mm
Car Roof100mm
Body-outer Panel80mm
Side Piece80mm
Underfloor75mm thick heat-preserving plate +18mm multi-layer plywood +4mm FRP plate
Optional AccessoriesHanging system, guide way system, storage racks shelf shelf for goods, heat preservation portiere
