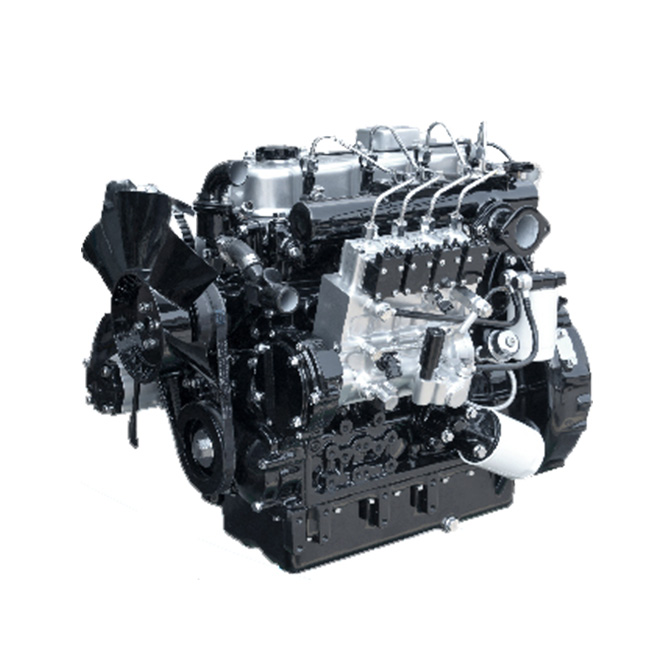

Tractor Engine

Engine model4DW81-30GG24DW81-35GG24DW91-40GG24DW91-45GG24DW92-50GG24DW92-55GG2
Bore× Stroke (mm ×mm)85*9585*9590*10090*10090*10090*100
Total displacement (L) 2.1562.1562.5452.5452.5452.545
Air intake typeNatureNatureNatureNatureturbochargedturbocharged
EmissionStage II
Power ranges30~55 PS

Technical parameters of tractor diesel engine
Rated power/speed (kW/rpm)22/220025.6/230029.4/240033/240036.6/230040.3/2400
Maximum torque/speed (N·m/rpm)135/1350-1650135/1400-1700160/1600-1800160/1600-1800185/1400-1700188/1500-1800
Minimum fuel consumption at full load (g/kW·h)

Idle speed

Net weight260
Typeinline, mechanical pump, direct injection, natureinline, mechanical pump, direct injection, turbocharged
Cylinder number4
Bore× Stroke (mm ×mm)/displacement (L)85*95/2.15685*95/2.15690*100/2.54590*100/2.54590*100/2.54590*100/2.545
Direction of rotation(face to flywheel)Anticlockwise
Starting system DC12V electric
Dimensions: length × width × height (mm)826.5*729*640826.5*620*640
EmissionStage II
