Motor de grupo electrógeno

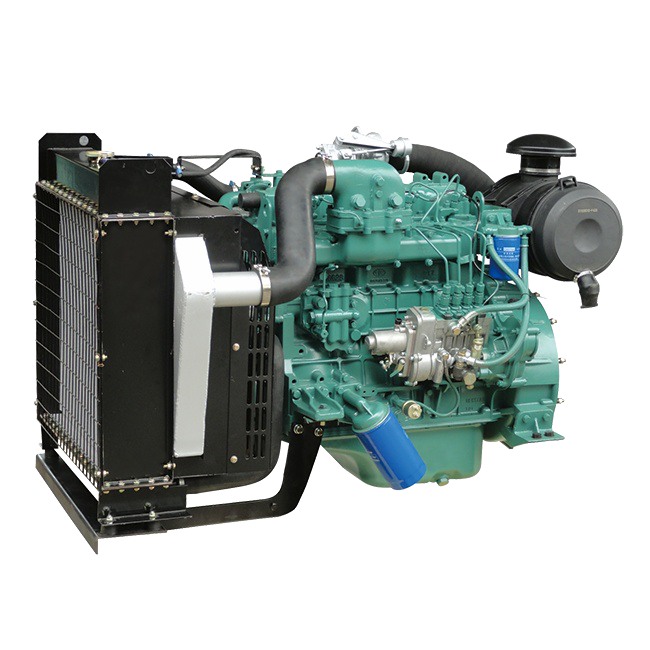

4DF Generating Set Engine

Compartimiento:

Rated speed: 1500rpm

Engine model4110/125Z-09DCA4DF2-12D
Type4-cylinder 4-stroke
Air intake typeTurbochargedTurbocharged& intercooling
Cooling modeWater cooling
Governor modeelectronic
Bore×Stroke(mm)110×125
Compression ratio17.5:1
Rated speed(rpm)1500
Displacement(L)4.75
Rated power(without fan)(kW)6584
Standby power(without fan)(kW)7292
Fuel consumption(g/kWh)215205
Oil consumption(L/h)0.080.08
Steady state speed regulation(%)≤3
Oil capacity including filter(L)16
Emission compliantStageⅡ
The flywheel shell interfaceSAE3
Flywheel for 11.5″flexible coupling
Dry weight of Gen Pac(kg)609620
Overall dimension(mm)1353×680×952
Fan consumption(kW)44
27℃ air consumption(m3/min)4.65.3
Heat rejection of exhaust(kW)4655
Exhaust gas temperature after turbine(℃)450450
Exhaust gas flow(m3/min)12.314.2
Heat rejection from engine(kW)4.34.8
Heat rejection of coolant(kW)3640
Base configurationStandard configuration(add on the base)
Engine with fanIntake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 65A 28V
Starter motor 5kW 24V
Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard


Rated speed: 1800rpm

Engine model4110/125Z-11DCA4DF2-14D
Type4-cylinder 4-stroke
Air intake typeTurbochargedTurbocharged& intercooling
Cooling modeWater cooling
Governor modeelectronic
Bore×Stroke(mm)110×125
Compression ratio17.5∶1
Rated speed(rpm)1800
Displacement(L)4.75
Rated power(without fan)(kW)80101
Standby power(without fan)(kW)88110
Fuel consumption(g/kWh)215205
Oil consumption(L/h)0.080.08
Steady state speed regulation(%)≤3
Oil capacity including filter(L)16
Emission compliantStageⅡ
The flywheel shell interfaceSAE3
Flywheel for 11.5″flexible coupling
Dry weight of base(kg)470480
Dry weight of Gen Pac(kg)579609
Fan consumption(kW)77
Base configurationStandard configuration(add on the base)
Engine with fanIntake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 65A 28V
Starter motor 5kW 24V
Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard
