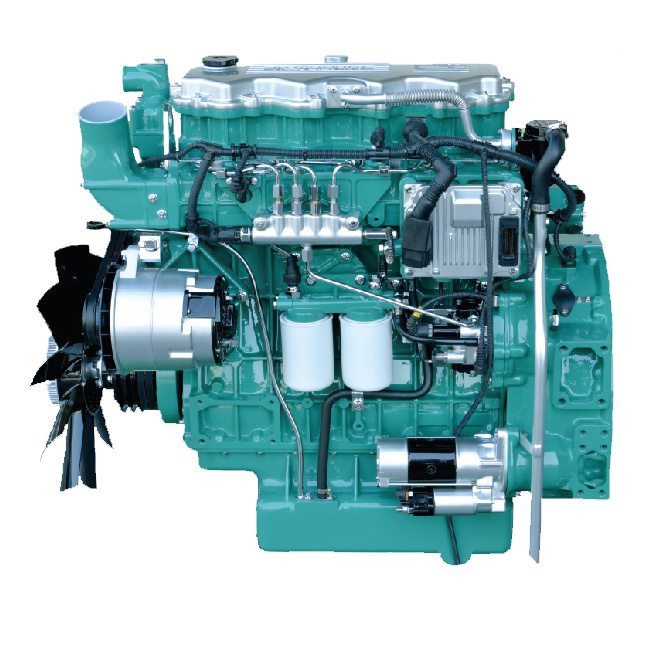

EURO V Vehicle Engine CA4DLD series

EURO V CA4DLD series

ModelCA4DLD-13E5CA4DLD-15E5CA4DLD-17E5CA4DLDZ-18E5
Type4-cylinder in-line, direct injection, turbocharged&intercooling, common rail
Bore×Stroke(mm)108×120
Valves/cylinder4
Displacement (L)4.4
Rated power/rated speed (kW/r/min)98/2500105/2500112/2500127/2500
Net power/speed (kW/r/min)96/2500103/2500110/2500125/2500
Maximum torque (Nm)450450530600
Maximum torque speed(r/min)1300~1700
Fuel consumption(g/kW·h)200
Noise dB(A)≤94
Technical RouteSCR/ EGR+VNT/FGT+POC
Emission Compliant (TAS)EURO V
Net Mass(kg)560
Length×Width×Height(mm)992×780×960
