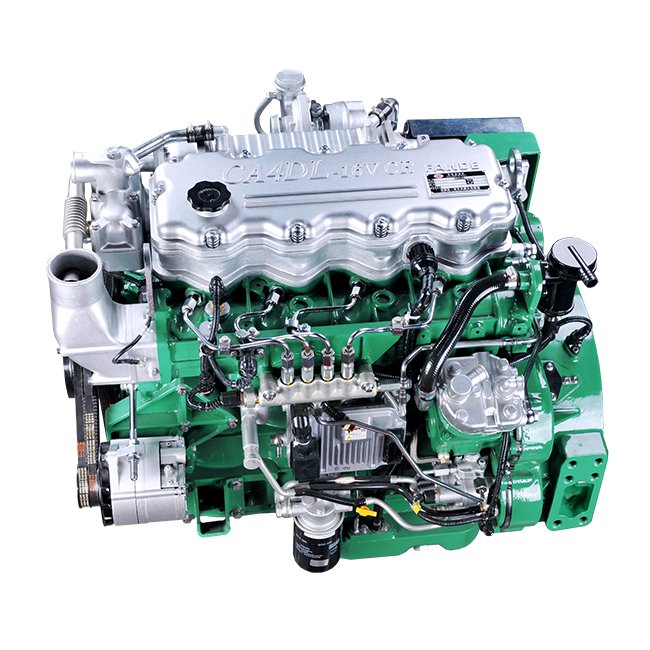

EURO IV CA4DLD series
|Type||4-cylinder in-line, direct injection, turbocharged&intercooling, common rail|
|Rated power (kW)||98||105||112||127|
|Net power (kW)||96||103||110||125|
|Rated speed (r/min)||2500|
|Maximum torque (Nm)||450||450||530||600|
|Maximum torque speed (r/min)||1300～1700|
|Fuel consumption (g/kW·h)||200|
|Noise dB (A)||≤ 94|
|Emission Compliant (TAS)||EURO Ⅳ|
|Net Mass (kg)||560|
Adopt electric-controlled high pressure common rail system, with higher oil injection pressure, greater atomization rate and more sufficient combustion;
Four-valve technology, with high and exhaust efficiency;
Do not need to use after treatment injection system, with low usage and maintenance cost.
Adopt electric-controlled common rail system that is widely used in the world, with mature technology;
Use inter Euro first-class brand products for the key spare such as piston, piston ring, crank, bearing bush and high strength bolt;
Use pressure difference sensor for real-time monitoring the operation of after treatment processor.
Adopt Holland LMS vibration test system to make vibration optimization on the whole set, providing NVH support optimization for forming a complete set, with small vibration and low noise;
Optional cruise function, reduce driving strength;
Precise dynamic calibration makes the whole vehicle smooth in shifting;
Optional fuel level switch, differential pressure switch, automatically remind of drain through primary filter and fine filter for clogging.
Optional exhaust braking device and it is safer for going downward along a slope with heavy load;
It is optional to install OBD fault detection for real-time fault alert.
Adopt patent technology of four-valve, double-intake passage, with slight smoke;
Optimization of whole set:
Adopt Austria AVL vehicle power transmission system simulation software to calculate, analyze & compare, test and evaluate for the whole vehicle matching, and the whole vehicle has powerful matching and better economical efficiency;
There are multiple after treatment devices for options, to meet different needs of the whole vehicle;
Do not need to use after treatment injection system, adopting after treatment device with silencer and the whole vehicle has convenient arrangement.
Optional GPS system, with vehicle management, real-time control, vehicle security, remote diagnosis and other functions;
Optional remote throttle, speed limits, deputy shutdown, CAN instrument and other functions.
7.2~9 meters road, tourism and urban passenger bus;
Medium and Heavy truck over 12 tons;
