Motor de vehículo EURO III

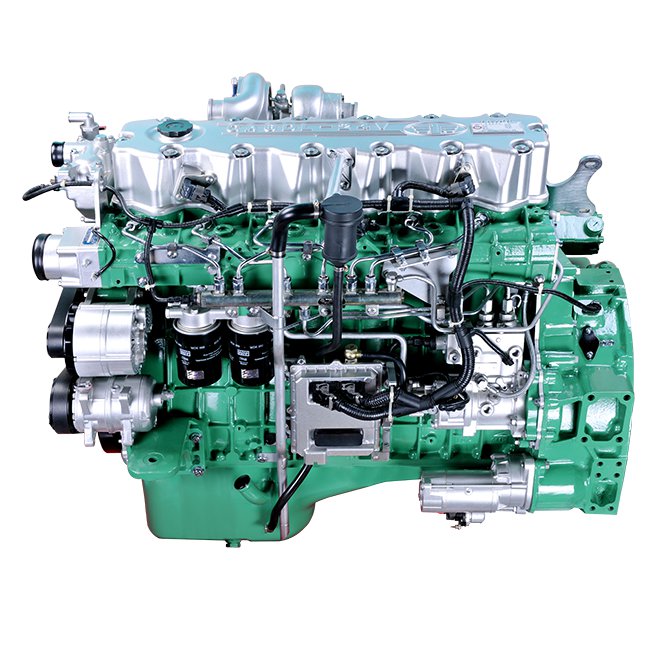

EURO III Vehicle Engine CA6DL2 series

Higher injection pressure, higher atomization rate, and more sufficient in combustion;

Reinforcement design on motion friction pair, structure components and other pieces, explosion pressure is high;

Initially use four-valve technology at home, with high inlet and exhaust efficiency;

Compartimiento:
ModelCA6DL2-33E3CA6DL2-35E3CA6DL2-37E3CA6DL2-33UCA6DL2-35U
Type6-cylinder in-line, direct injection, turbocharged&intercooling, common rail6-cylinder in-line, direct injection, turbocharged&intercooling, electronic unit pump
Bore×Stroke (mm)112 × 145
Valves/cylinder4
Displacement (L)8.57
Rated power (kW)249261279249261
Net power (kW)246258276246258
Rated speed (r/min)2100
Maximum torque (Nm)13501500150013501450
Maximum torque speed (r/min)1300~1500
Fuel consumption (g/kW·h)192194
Noise dB(A)≤ 96
Technical Routecommon railelectronic unit pump
Emission Compliant (TAS)EURO Ⅲ
Net Mass (kg)840
Length×Width×Height (mm)1285×820×1160

Fuel Efficient:

Higher injection pressure, higher atomization rate, and more sufficient in combustion;

Reinforcement design on motion friction pair, structure components and other pieces, explosion pressure is high;

Initially use four-valve technology at home, with high inlet and exhaust efficiency;

Optional integrate VCU device (polymorphic switch and etc.) that is researched and developed independently, and oil supply can be adjusted according to vehicle load;


Reliable:

Use inter Euro first-class brand products for the key spare parts such as piston, piston ring, crank, bearing bush and high strength bolt;

Products have passed through German TUV inter Euro certification;

Whole set B10 life span is 800,000 km.


Comfortable:

Adopt Holland LMS vibration test system to make vibration testing optimization on the whole set, providing NVH support optimization for forming a complete set, with small vibration and low noise;

Adopt helical gear transmission to improve transmission stability and reduce mechanical noise;

Adopt ladder frame to increase structure rigidity of the whole set and reduce vibration;

Optional cruise function, reduce driving strength;

Precise dynamic calibration makes the whole vehicle smooth in shifting;

Optional fuel level switch, automatically remind of drain through primary filter.


Safe:

Optional engine braking technology, with great braking power, and it is safer for going downward along a slope with heavy load;

It is optional to install OBD fault detection for real-time fault alert.


Environment-friendly:

Pass through European Union Emission Certification;

Adopt four-valve overhead camshaft technology and electric-controlled high pressure common-rail technology, with low smoke;

Emission margin is large, with emission upgrade potential.


Optimization of whole set:

Adopt Austria AVL vehicle power transmission system simulation software to calculate, analyze & compare, test and evaluate for the whole vehicle matching, and the whole vehicle has powerful matching and better economical efficiency;


Personal Design:

Optional GPS system, with vehicle management, real-time control, vehicle security, remote diagnosis and other functions;

Optional PTO device, to meet the need of special vehicle use;

Optional remote throttle, speed limits, deputy shutdown, CAN instrument and other functions.
