Camión de la basura

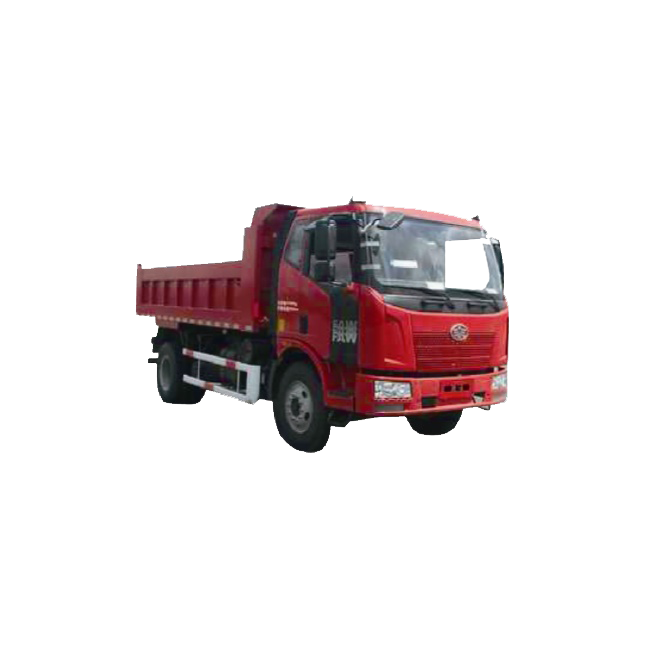

[Dump Truck]Cab Over Engine Truck 4x2

Compartimiento:
Working ConditionFor Short Distance
Chassis ModelCA3160P62K1E4(EuroIV)
Drive System4×2
Tare Weight(kg)8000
Rated Load(kg)7800
Outline Dimension(mm)7280×2465×3100
Body Internal Dimension(mm)4900×2300×800
Engine Power(Hp)160/180
Gearbox8JS85F
ClutchФ395
CabJ6L
Drive axleФ457 casting axle with ABS
Tire 9.00-20,10.00-20
Wheel base(mm)4090
Wheel Track(mm)1928/ 1847
Top speed(km/h)82
Others Informationair exhaust brake, air conditioner
Upper PartsStructuresone single door or triple doors, channel-shaped

Plate Dimension3mm bottom,2.5mm side(16Mn)

Lifting Mechanismmiddle Maleli or front lifting

Oil CylinderΦ160
Recommended modelsB03AM40164T7101AE
